MODEL: MT-510

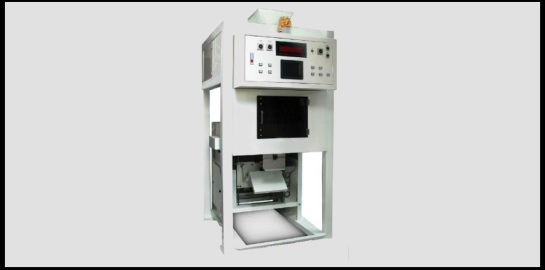

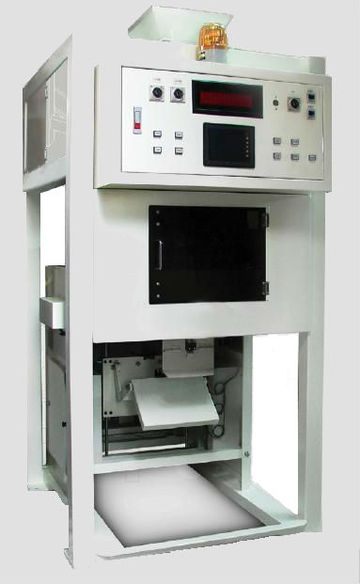

  • Granule Packing Machine Model : MT-510

    Feature:

    1. Suit for product which with good flow ability.

    EX: Rice, Beans, Animal Food...etc

    2. The machine can be connected with our repacking system or vacuum system

    3. Load-cell: HBM (Germany)

    4. Pneumatic System: Bosch (Germany)

    5. Air Cylinder: Bosch (Germany)

    5. Vacuum Pump: Busch (Germany)

    6. Sensor: Sick (Germany)

    7. Weighing Indicator: AND (Japan)

    8. PLC control system: Mitsubishi (Japan)

    9. Touch screen control panel

    10. Equipped with 30 sets of weighing memories, operators only need to touch the panel to choose different weight, no need to change any part

    11. Adjustable for various sizes bags

    12. The machine equipped with automalfunction detecting system, the malfunction will be shown on the panel and tell operator how to handle the problem

    Working Procedure:

    Roll Tube FilmàDate CodingàPrimary Sealing (Bottom of bag)àBag Cuttingà Empty Bag Feeding à Bag Mouth Openingà Weighing Filling àSecondly Sealing (Top of bag)à Discharge

    Packing Range 500g-5kg/5kg-15kg
    Speed 7-8 Bags/Minute
    Accuracy Depending on product specification
    Bag size range Width 200-350mm/ Length 470-560mm
