MODEL: MT-1521A

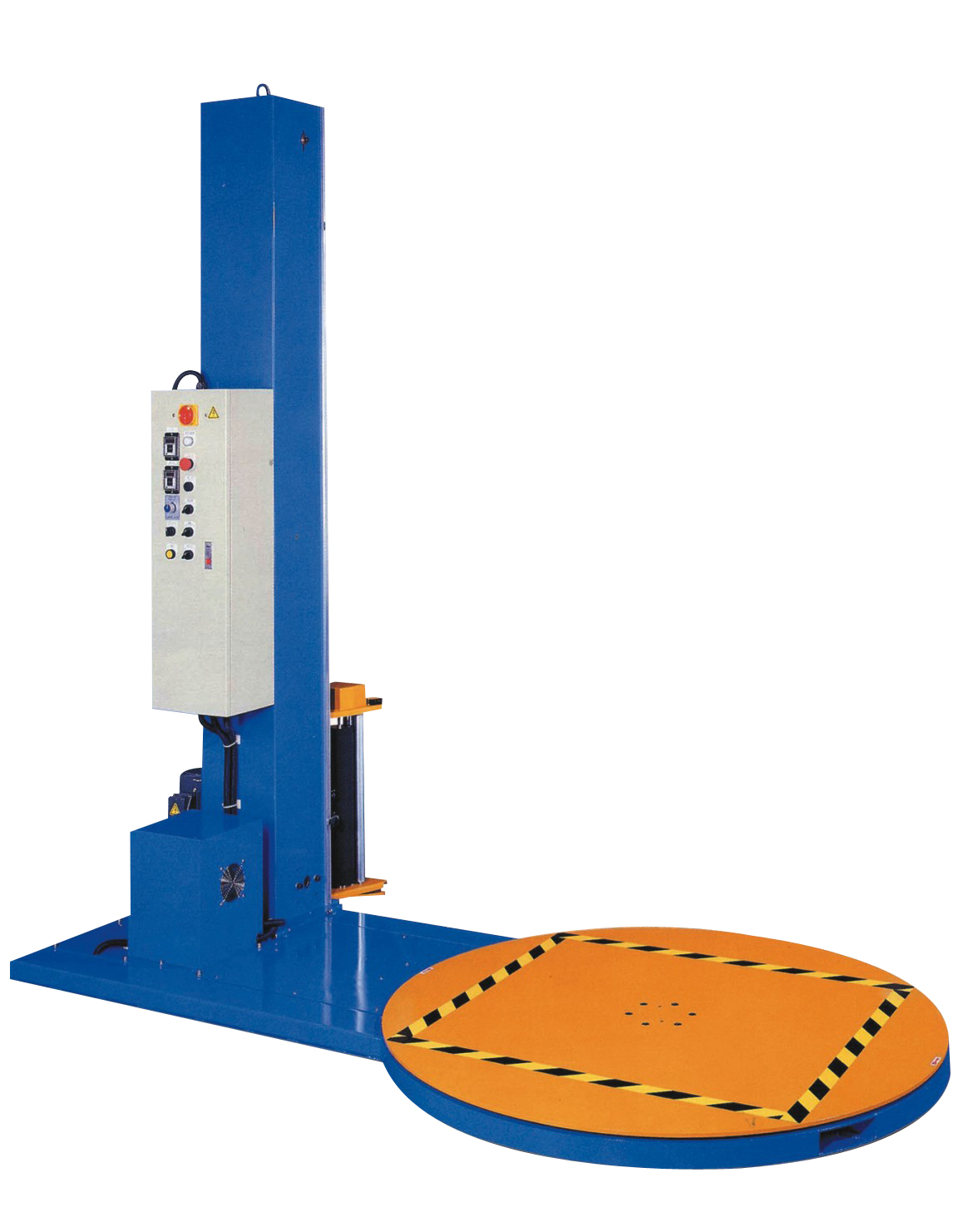

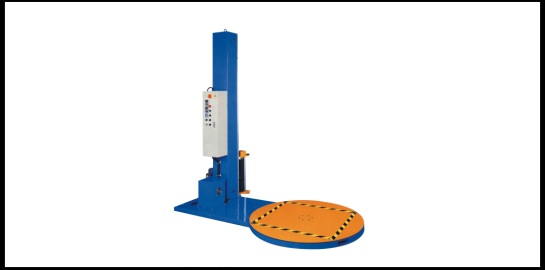

  • Auto Pallet Wrapping Machine Model : MT-1521A

    • Product Description
    • PLC controlled, can be set up for 3 levels of wrapping top, middle and bottom can also be manually operated.
      3 sets of limit switches to ensure operation safety.
      Slow and smooth starting turntable to safe guard pallet load. auto tear off design.
      Specification can be made according to the customer's requirement.
    • ChromeFirefoxOperaSafariIf you still using Internet Explorer download this MP4 your browser is not ready yet for html5 video !!



    Product Specifications

  • Power
    		 3Ø , 220/440 V, 50/60 Hz
    Wrap height
    		 2100mm
    Turntable
    		1500mm
    Turntable speed
    		 0-15rpm adjustable
    Loading
    		 2000kgs ,  Machine Weight:600kgs
    Machine size
    		 L2350 x W1500 x H2440 m/m
  • Certifications
    CE
    Others 1
    Options:Pre-stretch system, access ramp, top pressure plate.
