MODEL: MT-503T

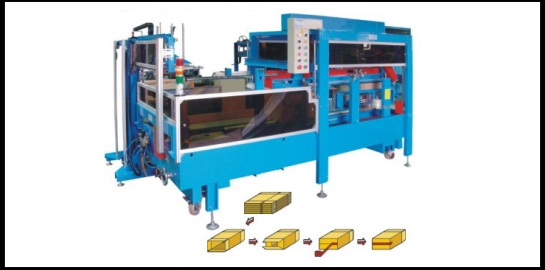

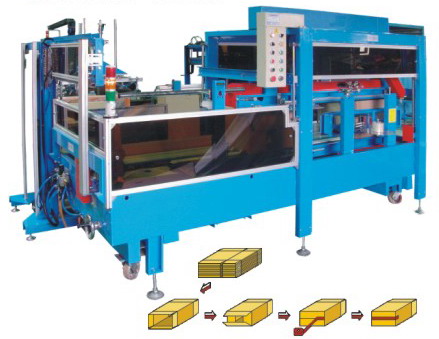

  • Auto Carton Erector and Sealer (Horizontal Type) Machine Model : MT-503T

    Product Description

    • Suitable for larger cartons or cartons of special style.

      With sensors of out-of-carton and erection failure.

      With sensors of sealing failure and over loading.

      PLC control.

    • ChromeFirefoxOperaSafariIf you still using Internet Explorer download this MP4 your browser is not ready yet for html5 video !!

    Product Specifications

    Power

    220/440 V, 50/60 Hz , 1Phasc

    Carton size

    L500~700 , W300~600 , H150~500 mm

    Speed

    6~12 Cases/Min

    Tape

    2" (2 1/2",3" Optional)

    Table height

    630 mm (Adjustable Range 600~700 mm)

    Air

    5 kg/cm2

    Machine weight

    880 kgs

    Machine size

    L3000 x W2000 x H1900 mm

    Certifications

    CE

    Others 1

    *Custom Design Available.
