MODEL: MT-501T

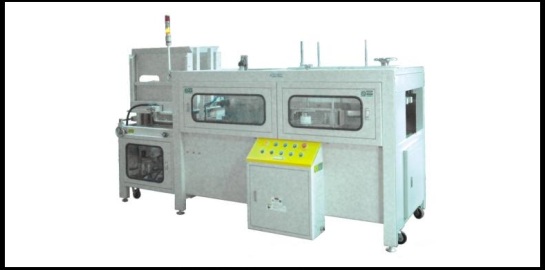

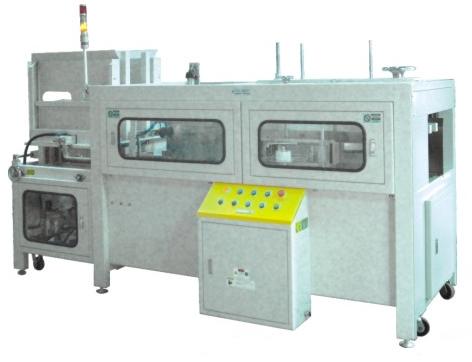

  • Auto Carton Erector and Sealer (Horizontal Type) Machine Model : MT-501T

    Product Description

    • Erect and forms carton, folds and seals bottom flaps fully automatically.

      Horizontal filling magazine design. Delivers and feeds flat unfolded cartons consistently.

      User friendly and easy to adjust handle for special cartons.

      PLC control.

    • ChromeFirefoxOperaSafariIf you still using Internet Explorer download this MP4 your browser is not ready yet for html5 video !!

    Product Specifications

    Power

    110/220 V, 50/60 Hz , 1 Phase

    Carton size

    L120~600 , W150~500 , H150~500 mm

    Speed

    6~12 Cases/Min

    Tape

    2" (2 1/2",3" Optional)

    Table height

    630 mm (Adjustable Range 600~700 mm)

    air

    5 kg/cm2

    Machine weight

    500 kgs

    Machine size

    L3100 x W1050 x H3100 mm

    Certifications

    CE

    Others 1

    *Custom Design Available
