MODEL: MT-LP400

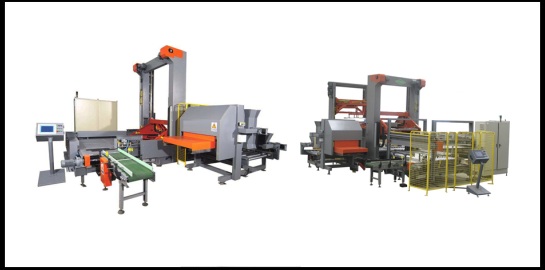

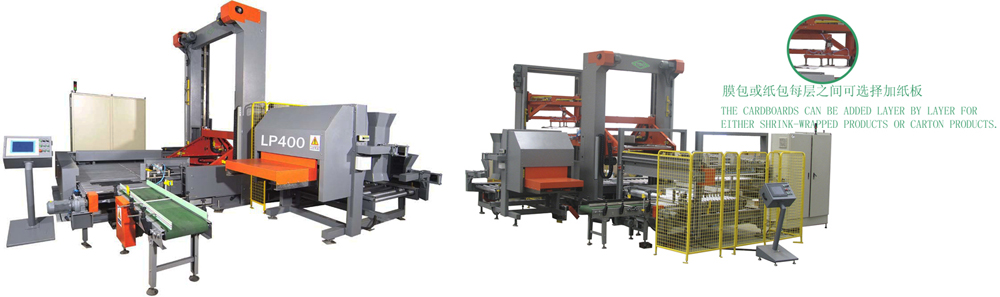

  • Low Level Palletizer Model : MT-LP400

    Machine Model
    MT-LP400/DLP600/LS400/DLS600

    Machine Features
    → Low-level in-feed with single in-feed, double in-feed, double in-feed
    double-stack palletizer type for selection.
    →Applicable to various packaging types, such as carton, paper bag, shrink
    -film, crate and drum etc.
    →PLC control, provided with human-machine interface operation panel,
    easy operation.
    → The mechanical motion is steady with low noise.
    → Cardboard can be added to the bottom or between layers according to
    the customers' requirements for shrink-wrapped products.
    →Suitable for different palletizing patterns with convenient adjustment.
    → Pallets with two kinds of different materials are applicable.

    Machinery Parameters
    → Max capacity:40cartons/min
    → Max pallet magazine capacity per layer:250kg
    → Max pallet magazine capacity:1500kg
    → Max pallet height:1800mm
    → Standard pallet size:1100mm*1100(mm)
    → Electric power installed:13kw
    → Compressed air pressure:7bar
    → Compressed air consumption:110L/min.
