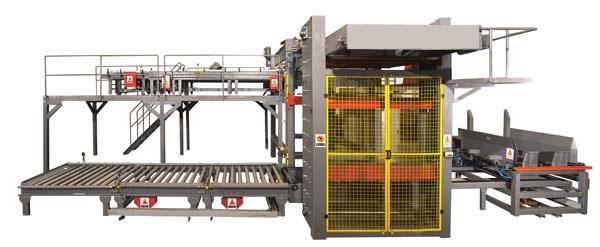

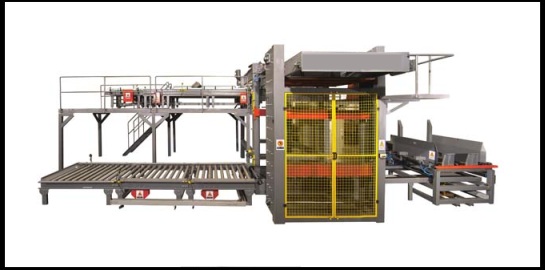

MODEL: MT-HP800

  • High level Palletizer Model : MT-HP800

    Machine Model
    MT-HP400/DHP600/DHP800

    Machine Features
    → High-level in-feed is provided with a support structure.
    → Applicable to various packaging types, such as carton, paper bag, shrink
    -film, crate and drum etc.
    → PLC control, provided with human-machine interface operation panel,
    easy operation.
    →The mechanical motion is steady with low noise.
    → High-level product in-feed makes piling up and operation more steady.
    → Cardboard can be added to the bottom or between layers according to
    the customers' requirements for shrink-wrapped products.
    → Suitable for different palletizing patterns with convenient adjustment.
    → Pallets with two kinds of different materials are applicable.

    Machinery Parameters
    → Max capacity:40cartons-80cartons/min
    → Max pallet magazine capacity per layer:250kg
    → Max pallet magazine capacity:1000kg
    → Max pallet height:1800mm
    → Standard pallet size:1400mm*1200mm
    → Electric power installed:30kw
    → Compressed air pressure:7bar
    → Compressed air consumption:300L/min
