MODEL: MT-L3610W

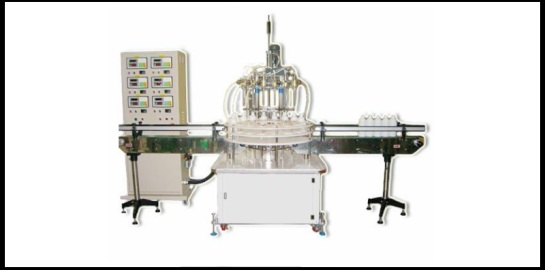

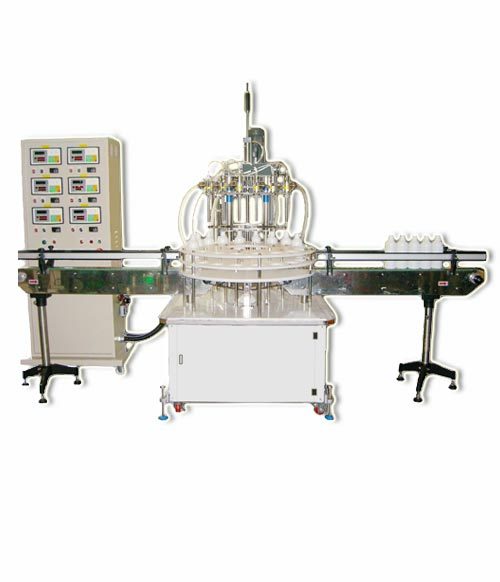

  • Automatic Liquid Weighing Filler (Six Filling Nozzles) Machine

  • Model : MT-L3610W


    ■ Application：
    Suitable for large volume, high viscosity or flowing liquid and easy foamy and spume.

    ■ Features：

    1- Filling by gear pump.

    2- Filling nozzle dip into bottle, avoid liquid foaming.

    3- Air cylinder and Anti-dripping valve designed ensure accuracy and clean.

    4- Fill and load cell work at the same time, filling accurately.

    5- 2 sections filling: first section: large volume in high-speed & second section micro adjustment in low-speed.

    6- Filling volume adjusted and set by monitor, easy to operate.

    7- No bottle no filling safety system.

    8- Filling nozzle is easy to disassemble and maintain.

    ■ Specification

    Filling Range 50 c.c.~1000 c.c.

    Filling Speed 24~30 bottles/min

    Accuracy ± 1%

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 3 KW

    Machine Size L3430 x W1500 x H2320mm
