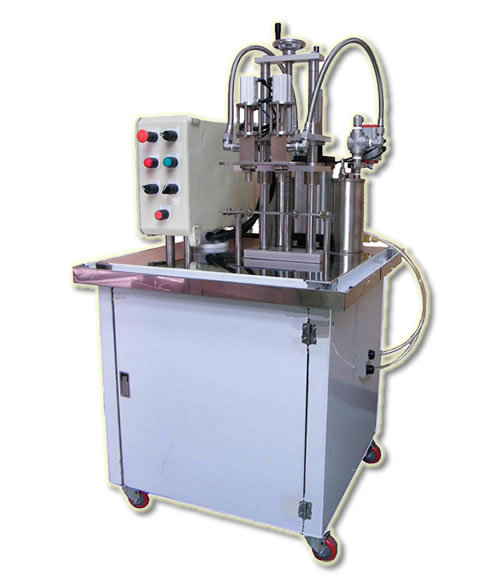

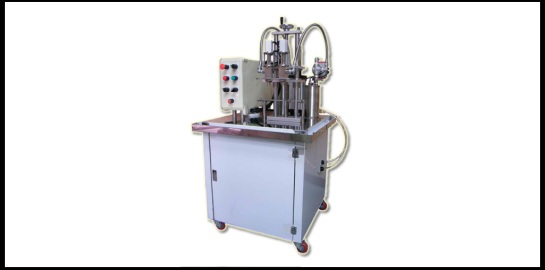

Semi-Automatic Liquid Filling Machine (Explosion-proof) Model : MT-L1210-EP

■ Application：
Suitable for high viscosity or flowing liquid that easy to foamy and spume.

■ Features：

1- Filling by air-hydro cylinder driven with quantitative cylinder.

2- Filling speed stable and smoothly, it can be adjust separately.

3- Volume adjusted by scale, easy to operate.

4- Check Valve designed ensure accuracy and easy to clean.

5- Height of filling nozzle is adjustable, suitable for various higher or lower bottle sizes.

6- Filling nozzle is easy to disassemble and maintain.

7- All parts that contact with liquid and filling nozzles are made by SUS.304#.

PS :

1- Please prepare air compressor when use this machine.

2- Equipped with 4 sets filling nozzles are decided by user.

■ Specification

Filling Range 200c.c ~1000 c.c

Filling Speed 8~10 bottles/min

Accuracy ± 1%

Power, Source 220/380 Volts, 3 Phase

Power Consumption 0.1 KW

Machine Size L.725 x W.725 x H.1700mm
