MODEL: MT-P210

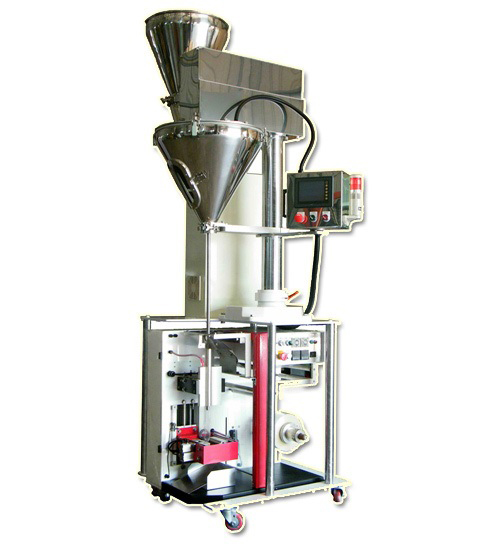

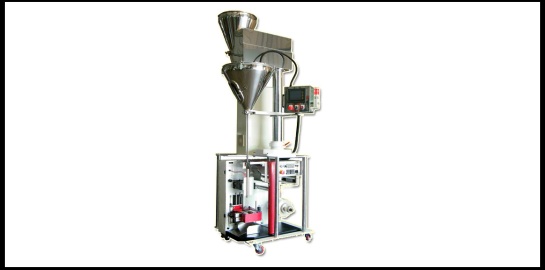

  • Powder Packing Machine Model : MT-P210


    ■ Application：
    Suitable for foods, Medicines, Chemicals,Pesticides…etc, and for powder in Film Form / Bag Seal.

    ■ Features：

    1 - Human Machine Interface Control System, Touch Screen. Easy to operate.

    2 - Auger is driven by Servo Motor orientation accurate.

    3 - Mix Motor by Servo Motor, high torque.

    4 - Touch Temperature Controller, easy to set.
    Stable & Excellent sealing effect.

    5 - Using pneumatic sealing, easy adjustment and easy maintenance.

    6 - All parts that powder flow through are made by SUS 304# and polishing dispose. Meet with G.M.P. Standard.

    ■ Specification

    Seal Type Pillow Seal

    Filling Range 1~30g

    Filling Speed 20~40 bags/min

    Accuracy ± 1 / 100

    Bag Length 50~120mm

    Bag Width 50~100mm

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 3.5KW

    Machine Size L 770 x W 570 x H 2200 mm
