MODEL: MT-P420

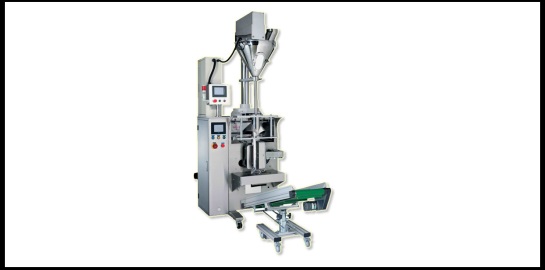

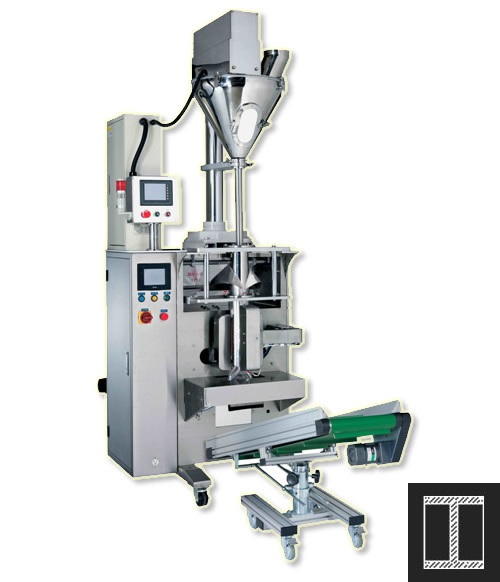

  • Powder Packing Machine Model : MT-P420


    ■ Application：
    Suitable for foods, Medicines, Chemicals,Pesticides…etc, and for powder in Film Form / Bag Seal.

    ■ Features：

    1 - Human Machine Interface Control System,Touch Screen. Easy to operate.

    2 - Auger is driven by Servo Motor, orientation accurate.

    3 - Mix Motor by Servo Motor, high torque.

    4 - No Paper, No Material, Heater Error, Auto. Stop safe system.

    5 - Paper adjust system control by Servo Motor.Paper length control stable and exactly.

    6 - All parts that powder flow through are made by SUS 304# and polishing dispose. Meet with G.M.P. Standard.

    ■ Specification

    Seal Type Pillow Seal

    Filling Range 200g~1000g

    Filling Speed 10~20 bags/min

    Accuracy ± 1 / 100

    Bag Length 100~300 mm

    Bag Width 85 ~ 200 mm

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 3.825 KW

    Machine Size L1450 x W960 x H2700 mm

    Machine Weight 750 KG
