MODEL: MT-P410

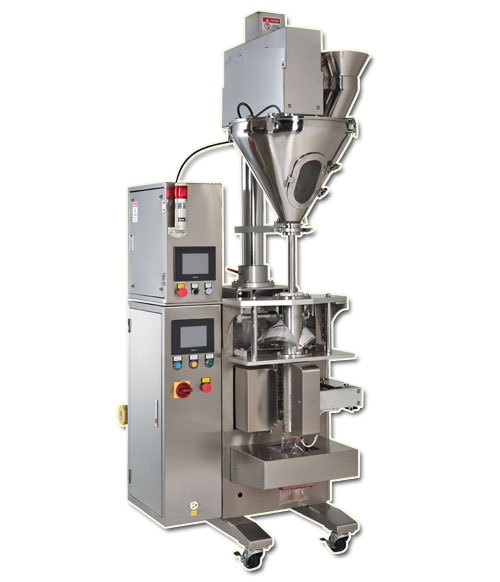

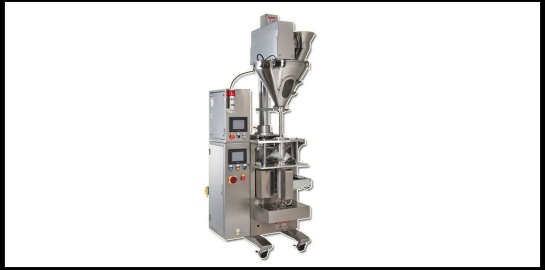

  • Powder Packing Machine Model : MT-P410

    ■ Application：
    Suitable for foods, Medicines, Chemicals, Pesticides…etc, and for powder in Film Form / Bag Seal.

    ■ Features：

    1 - Human Machine Interface Control System,Touch Screen. Easy to operate.

    2 - Auger is driven by Servo Motor, orientation accurate.

    3 - Servo mixing Motor, mixing speed is adjustable.

    4 - No Paper, No Material, Heater Error, Auto. Stop safe system.

    5 - Paper adjust system control by Servo Motor.Paper length control stable and exactly.

    6 - All parts that powder flow through are made by SUS 304# and polishing dispose. Meet with G.M.P. Standard.

    ■ Specification

    Seal Type Pillow Seal /

    Filling Range 20g~200g

    Filling Speed 20~30 bags/min

    Accuracy ± 1 / 100

    Bag Length 100~250 mm

    Bag Width 60 ~ 130 mm

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 3.825 KW

    Machine Size L.700 x W.1160 x H.2350mm

    Machine Weight 470 KG
