MODEL: MT-P340-2

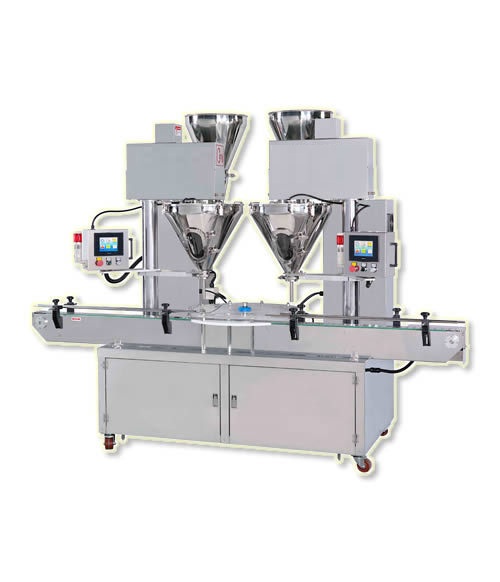

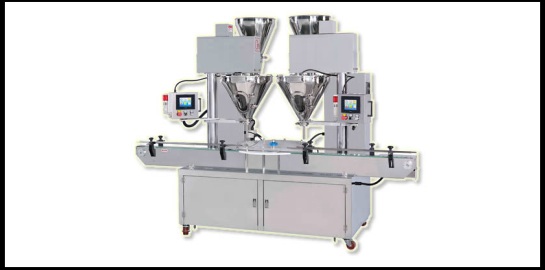

  • Powder Packing Machine Model : MT-P340-2

    ■ Application：
    Suitable for acid, alkaline, corrosive liquid, high viscosity or flowing liquid that easy to foamy and spume.

    ■ Features：

    1 - Human Machine Interface Control System, Touch Screen. Easy to operate.

    2 - Auger is driven by Servo Motor, orientation accurately.

    3 - Mixing Motor by Servo Motor, high torque.

    4 - Index, accurate cutter, divides orientation degree exactly.

    5 - No bottle no filling safety system .

    6 - All parts that powder flow through are made by SUS 304# and with polishing dispose. Meet with G.M.P Standard.

    ■ Specification

    Filling Range 1g ~1000 g

    Filling Speed 20~30 Containers/min

    Accuracy ± 1~5g

    Power, Source 220/380 Volts, 3 Phase

    Power Consumption 4.965 KW

    Machine Size L2700 x W950 x H2110mm

    Machine Weight 680 KG
